KroozR Honda CRF1000 Africa Twin Lowering Kit 50mm

The main focus on designing this kit was to retain the Front to rear balance of the bike whilst lowering the bike closer to the ground. The common mistake of lowering the bike at one end only results in a bike that is out of balance, hard to steer and greatly affects the handling/chassis characteristics of this Motorcycle.

We have designed and manufactured this complete kit in house here at Krooztune from start to finish, CNC machined in house here in Australia.

BILLET ALLOY REAR LINKAGE

The Rear of this bike is lowered using a Billet Alloy Linkage arm machined from high grade 6061 Alloy. Once fitted this will lower the rear end of your bike by either 30 or 50mm depending on the kit selected at time of purchase.

Lowering the front end of this bike needs to be done at a Motorcycle Repair shop or via a qualified experienced mechanic with suspension skillset.

Our Honda Africa Twin Lowering Kit kit has all the parts and instructions necessary to complete this task easily and most of all accurately and professionally to retain the balance and OEM performance in this Motorcycle.

BILLET SIDESTAND

Krooztune Engineered CNC Machined Billet side stand to 30mm and 50mm lowered Honda Africa Twin CRF1000.

Manufactured using High Grade 6061 Alloy that simply bolts on and replaces the standard unit with a shorter length to retain the correct lean angle once parked.

We include centre stand modification instruction and sleeves with every billet sidestand. The centre stand will need custom modification to better suit the lowered bike. It will work ok with a lowered bike, but it is a little more difficult to operate and to get the bike into the upright centre stand position.

We provide the parts and instructions to complete these modifications to the centre stand. This involves fabricating the stand and cutting out the lowered amount. We provide steel sleeves (as shown in picture) for ease of alignment and welding, resulting in a factory level job that is super strong.  Centre stand sleeves/parts are included with the kit and are detailed in the fully pictured instruction manual.

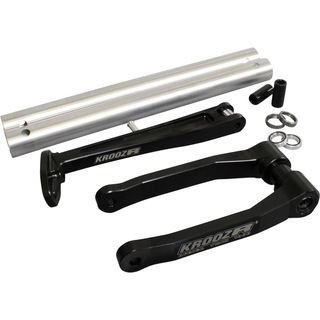

PARTS INCLUDED IN THE KIT

• Lowering linkage
• Fork lowering kit
• Sidestand
• Machined centre stand inserts for custom modification of the genuine OEM side stand.
• Detailed Pictured Instruction/fitting Manual

Our Honda Africa Twin lowering kit is designed to lower your motorcycle in 3 variants

• 30mm
• 50mm
• Adventure Sports -50mm only
